Patrick Cooper Key Takeaways
- An Electrolux refrigerator control board replacement starts from $200 on the site price table.
- A board communication error such as SY CE is listed from $320 because two boards and a harness are involved.
- Fans, sensors, a dirty condenser and Sabbath mode can all look like a dead board and cost less.
- On a refrigerator under about eight years old with a single fault, the board is usually worth replacing.
- The final price is confirmed after the on-site diagnosis, with a written estimate before work begins.
The Bottom Line
A control board replacement starts from $200, with communication errors from $320, but a diagnostic from $120 should come first because cheaper parts imitate a dead board. On a refrigerator with years left, replacing a confirmed board is usually the right call.
An Electrolux refrigerator control board replacement cost starts from $200 on the site's refrigerator price table, and climbs from there when the fault is a board communication error rather than a plain failed board. It is the one repair on a French door or side-by-side refrigerator where owners most often hear that the board is dead, so it is worth knowing what the board does, what else mimics a board fault, and where the real price tiers sit.
| What the visit finds | What you saw | Price indicator |
|---|---|---|
| Diagnostic only, no part needed | Warm compartments or an odd display | from $85 |
| User interface board fault | SB mode keeps coming back on its own | from $150 |
| Broader interface board failure | Display glitches next to the SB indicator | from $200 |
| Main control board replaced | No cooling cycle, dead fans, wrong readings | from $200 |
| Board communication error | SY CE shown on the display | from $320 |
What Does the Control Board in an Electrolux Refrigerator Do?

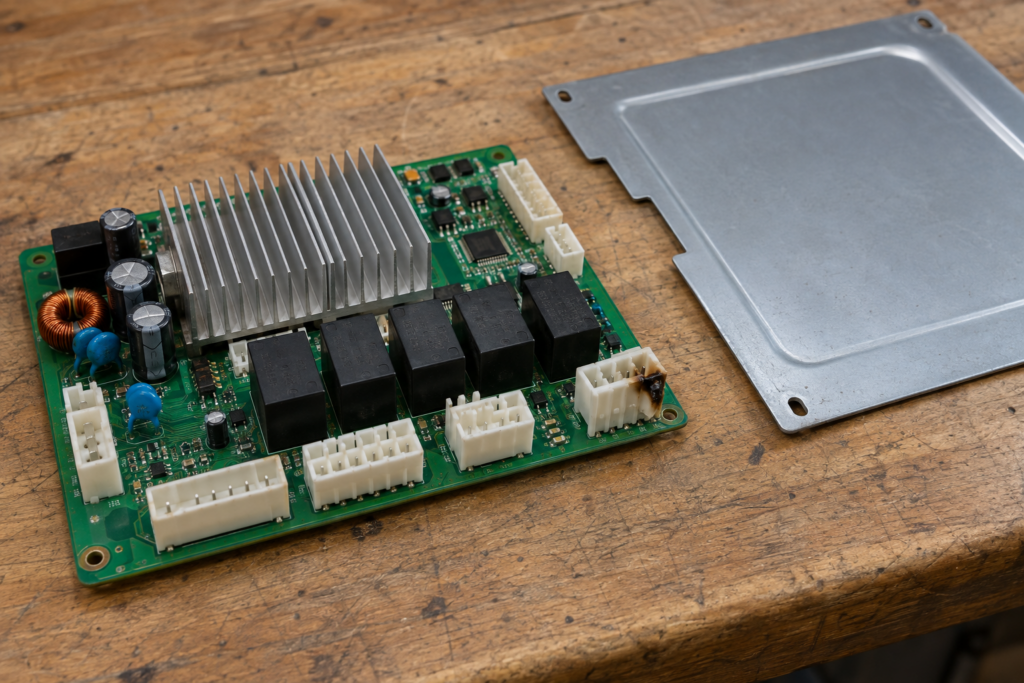

The control board is the part that decides when the compressor, the evaporator fan, the condenser fan and the defrost heater run. It reads the temperature sensors, drives the fan motors and talks to the user interface board behind the display. When a refrigerator that once cooled evenly starts cycling oddly, the board is a fair suspect, but it is rarely the only one.
Many Electrolux French door and side-by-side models use two boards that talk to each other: a main board that runs the sealed system and fans, and a user interface board behind the panel. A fault in the link between them is reported as SY CE, a board communication error, which the site lists with a typical repair from $320.
How Much Does an Electrolux Refrigerator Control Board Replacement Cost?
The site's refrigerator cost guide puts a control board replacement from $200, on top of a diagnostic fee from $120, with the final figure depending on the model and on whether the board is a main board or an interface board. A communication error on a French door model is listed from $320 because two boards and the harness between them are involved.
The price has three ingredients, and it helps to ask a technician about each one before agreeing to a repair.
- The part itself: main boards are model specific and cost more than interface boards, so the exact model number on the rating plate matters.
- Labor and access: reaching the main board usually means removing a rear or lower panel, and on built-in columns it can mean pulling the refrigerator forward.
- Diagnosis time: proving the board is at fault, rather than a sensor or fan, is a separate step that takes time on its own.
- Related parts: a corroded connector or a damaged harness is replaced in the same visit and can change the total.
Is It the Control Board or Something Cheaper?
Often it is something cheaper, which is why a diagnostic comes before a board. A failed fan motor, a defrost sensor or a dirty condenser coil can each look like a dead board, and each costs less to put right.
- Warm refrigerator, compressor silent: check the condenser fan and coils first; the Electrolux refrigerator not cooling guide lists the free checks.
- SY EF, SY CF, DE or DH on the display: these point at a specific fan, sensor or heater, not the board that reports them.
- Display dim, no lights, no alarms: if SB is showing, Sabbath mode is active, which is a setting and not a failure.
- Whole refrigerator dead after a power surge: the board is a real suspect here, and a surge can also take out a sensor in the same event.
A technician who tests the fan, the sensors and the heater before touching the board saves you a part you may not need. The board gets replaced when the other parts check out and the readings still make no sense.
What a Technician Checks Before Condemning the Board
A careful visit follows a fixed order, and knowing it lets you judge an estimate. The board is replaced last, after the parts that feed it have been ruled out, because a board fitted onto a faulty sensor or fan will show the same symptom within days.
- Power at the board: the technician confirms the refrigerator is receiving steady line voltage, since a weak supply can look like a board fault.
- Sensor readings: the temperature sensors are tested for resistance against what the board reports.
- Fan and heater circuits: the evaporator fan, condenser fan and defrost heater are checked for current when the board calls for them.
- Connectors and harness: corrosion, melted pins and loose plugs are found by eye before any part is ordered.
If every one of those passes and the board still sends commands that make no sense, the board is condemned, and the estimate should name the part. Ask for the model number of the board on the written estimate so the part can be matched to your refrigerator before it is ordered.
Is a Control Board Worth Replacing on an Older Refrigerator?
Usually yes, because the board is a small share of what a new refrigerator costs and the cabinet, doors and sealed system are normally still good. The site's cost guide notes that refrigerators last 12 to 18 years on average, and an Electrolux ERMC unit with a new price from $1,200 is still in the first half of that life at year seven.
The picture changes when the board is only one item in a list. A board repair on a refrigerator that also needs a compressor is a different decision, and the Electrolux refrigerator worth repairing guide and the repair or replace guide set out where that line falls.
- Under about eight years old, single fault: repair the board.
- Sealed-system warranty still active: check that cover before paying for anything else; it applies to the sealed system, not to the board.
- Several faults in two years: weigh the whole list against a new price, not each repair alone.
What to Have Ready Before the Visit
A little preparation shortens the visit and keeps the estimate honest. Write down the exact model and serial numbers, note which compartments are warm, and photograph the display if a code appears. Mention whether a power cut or a surge came first, because that points a technician at the board sooner.
- Model and serial number: found on the rating plate inside the cabinet, and they decide which board is correct.
- Display photo: a code such as SY CE is worth more than a description.
- Purchase date: so any warranty cover can be checked first.
Our Electrolux refrigerator repair service covers main boards, interface boards and the sensors and fans that imitate them. The final price is confirmed after the on-site diagnosis, and you get a written estimate before any work begins. You can book a visit or send us the model number and what the display shows, and we will tell you which tier of the table above you are most likely in.
